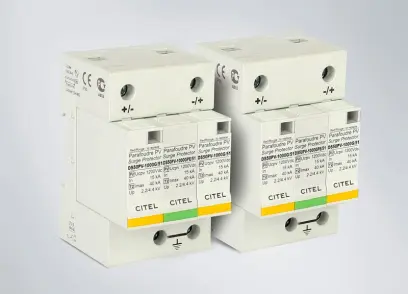

The overvoltage protection is supplied pre-installed and fully cabled, cannot be ordered separately!
For the Fronius Eco on the other hand, only the single variant is required for the type 2 overvoltage protection. Both measuring channels can also be used with the single variant. As is the case with the Fronius Symo, customers can choose between the single MPPT option and the multi MPPT option for the type 1+2 combi arrester, depending on whether only one or both measuring channels are used. Thanks to the adjustable, integrated remote signalling function, the system operator is notified automatically via the Fronius Solar.web online Portal* whenever the overvoltage protection trips. The plug-in modules allow for fast replacement in the event of a fault. Therefore only the individual module has to be replaced, rather than the entire overvoltage protection. The overvoltage protection is supplied pre-installed and fully cabled**.
| Technical data | DC OVP Type 1+2 - S | DC OVP Type 1+2 - M | DC OVP Type 2 - S | DC OVP Type 2 - M*** |
|---|---|---|---|---|
| Nominal voltage | 880 V DC | 1000 V DC | ||
| Max. operating voltage | 1060 V DC | 1200 V DC | ||
| Cable cross section | 2.5 - 25 mm² | |||
| Fault indicator | Mechanical, red | |||
| Remote message signal | Integrated | |||
| Standards | DIN EN 50539-11, UTE C61-740-51, EN 50539-11, UL1449 ed.3 | |||
*A Fronius Solar.web account is required.
**The option must be ordered at the same time as the inverter.
***Applies to Fronius Symo.
