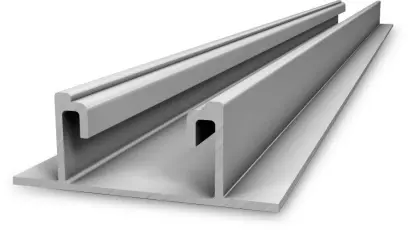

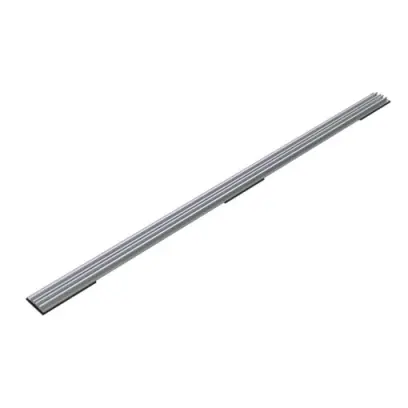

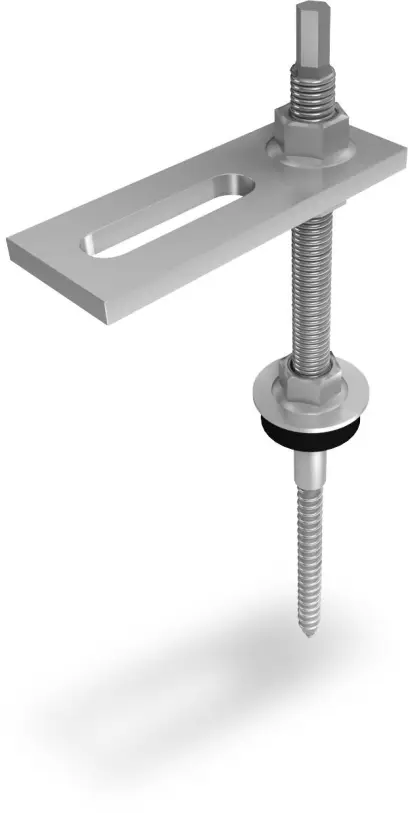

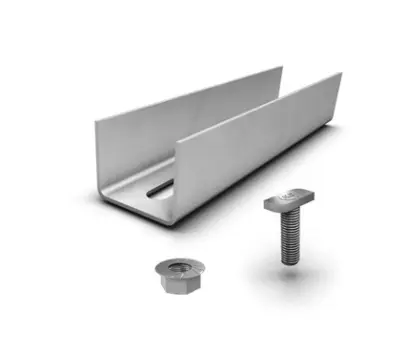

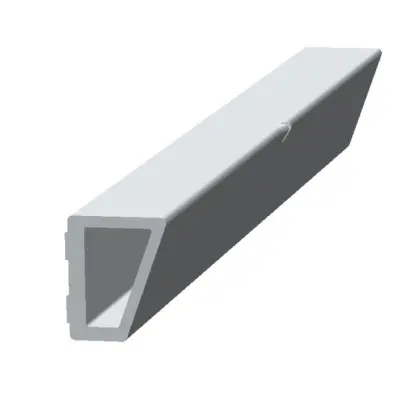

Szinte minden tető- és tetőfedőanyag típushoz kínálunk fotovoltaikusmegoldásokat. Különféle rendszerek közül választhat cseréptetőhöz, szálcementpala, trapézlemez, szendvicspanel fedésű vagy lapostetőhöz. A kínálatunkbanszereplő, tetőre telepítést segítő napelemes szerelőrendszerek gyors és minőségimunkát tesznek lehetővé, rendkívül ellenálló anyagokból, innovatív gyártásieljárással készülnek. Próbálja ki a Aerocompact, a német K2 vállalatszerelőrendszereit.
Szükség esetén örömmel adunk tanácsot a tetőre telepítéshez szükségesszerelőrendszer kiválasztásában. A világ bármely pontjára gyorsan szállítunk, emellettkülönféle finanszírozási megoldásokkal segítjük ügyfeleinket projektjeik megvalósításasorán.

Upgrade your solar setup with the Jinko Solar Tiger Neo N-Type 505W. As an industry-leading N-type TOPCon module utilizing Jinko's proprietary HOT 3.0 Technology, this panel offers vastly superior reliability, ultra-low degradation, and optimized generation in a highly efficient 108 half-cell design.
With its robust bifacial glass-glass (dual glass) design and a clean black frame, this panel absorbs light from both sides to deliver maximum total energy output, making it highly advantageous for large residential systems, carports, and commercial installations.
HOT 3.0 & TOPCon Technology: Achieves a 22.71% module efficiency while ensuring better light trapping and low-light performance.
Dual-Glass Bifacial Advantage: Built with dual 2.0 mm heat-strengthened glass layers. Captures ambient reflected light from the rear side, delivering significantly increased energy yields over standard panels.
Superb Temperature Performance: A low temperature coefficient of -0.29%/°C means minimal power drops even on blazing summer afternoons.
Super Multi-Busbar (SMBB) Technology: Improves current collection and light trapping, resulting in boosted module power output and enhanced long-term reliability.
Certified Anti-PID Protection: Optimizations in cell production technology and material controls virtually eliminate performance loss from Potential-Induced Degradation (PID).
Extended Industry Warranty: Backed by an extensive 15-year product warranty and a 30-year linear power warranty guaranteeing a minimal 0.40% annual degradation after year one.
Why choose the Tiger Neo 505W? Jinko Solar is one of the world's most bankable Tier 1 manufacturers. The 54HL4M-BDV series leverages premium dual-glass engineering, ensuring the panels are immune to micro-cracks while yielding up to 25% extra power from the backside reflection. Perfect for projects where maximum durability meets high-wattage requirements.

Modular and Scalable Battery System
The Tigo EI Battery comes in 3 kWh blocks that can be stacked together, allowing for easy expansion up to 12 kWh of total energy storage capacity.
EI Link - Central Connection Hub
The EI Link acts as the central component, connecting the inverter, battery, and other system elements, enabling efficient energy management and communication.
High-Performance Inverter
The three-phase EI Inverter is available 10 kW.
It supports up to 150% oversized PV power input compared to the AC output rating.
Features multiple Maximum Power Point Trackers (MPPTs).
Efficient Battery Charging and Discharging
It can deliver high discharge currents of up to 30A continuous from the batteries.
The batteries use Lithium Iron Phosphate (LFP) chemistry, known for stability and long cycle life.
Integrated Monitoring and Control
The Tigo Energy Intelligence (EI) platform enables remote monitoring, performance tracking, and over-the-air upgrades for the entire system.
Easy commissioning can be done in less than 10 minutes using the Tigo EI App.
Multiple Operating Modes
The system supports various modes, including self-consumption, time-of-use (TOU) optimization, and backup power supply during grid outages
Set includes:
1xTSI-10K3D
1xTSS-3PS (EI Link) Three-phase inverter wirebox with ATS
1xEI BMS
4xTSB-3 (EI Battery)
1xEI Battery Accessories
In general, this sensor measures the temperature on surfaces. By mounting the sensor on the back of the PV module, the module temperature can be measured.
The temperature of the PV module is one of the decisive factors for the power output. By supervision, the PV-owner can conclude the performance of the power chart.
Mounting tip: It is recommended to fix the sensor and the cable with an additional adhesive tape.
Technical data | |
Sensor | PT1000 |
Measuring range | -20°C to +150°C |
Accuracy | ±0.8°C (in the range -20°C to 100°C) |
Design | Sensor on an adhesive film for measurement on sheets |
Dimensions | 50 x 100 mm |
Cable | 3 m Cu-cable; silicon isolated, ferrules, UV-resistant |
Max. cable length (Distance: Sensor Card/Box - sensor) | 20 m |
