Warenkorb ist leer| Einheit: | |
| Code: | 170-039 |
| Modell: | SUN‐5K‐SG03LP1‐EU |
| Produktgarantie (Monaten): | 120 |
| Hersteller: | Deye |
Description

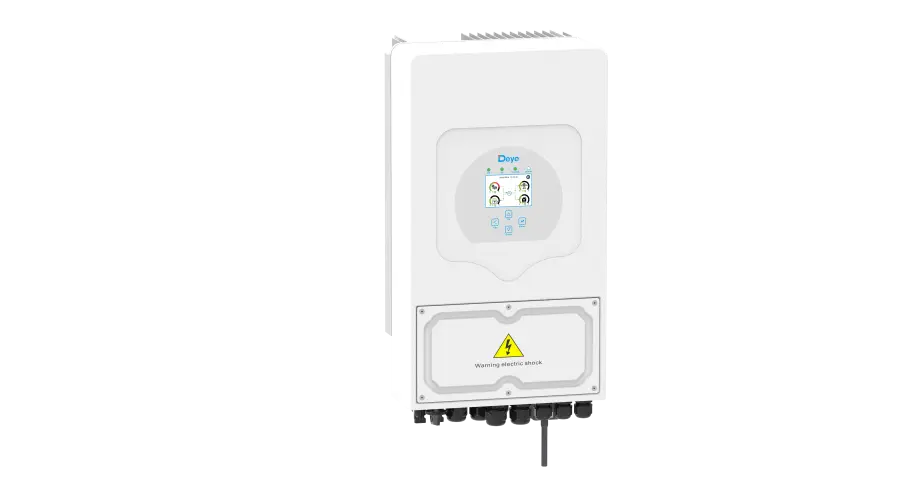

The Deye SUN-5K-SG03LP1-EU is a 5 kW single-phase low-voltage hybrid inverter engineered for residential energy storage and solar self-consumption setups.Operating on a safe 48V (40V–60V) low-voltage battery architecture, it provides up to 120A of maximum charge and discharge current.Equipped with 2 independent MPPT trackers, an intuitive color touch LCD display, AC coupling capability, generator integration, and fast off-grid backup switching, it provides flexible power control and uninterrupted emergency power for critical home loads.
Key Features & Benefits
Dual MPPT Tracking: Built with 2 independent MPP trackers (1+1 string inputs) to maximize power yield across multi-angle roofs or partially shaded arrays.
Safe 48V Low-Voltage Architecture:Fully compatible with standard 48V low-voltage lithium-ion ($\text{LiFePO}_4$) and lead-acid energy storage batteries.
High Charge/Discharge Capacity:Delivers up to 120A continuous charge and discharge current to handle high residential demand.
Generator Integration & AC Coupling:Features a dedicated auxiliary (AUX) port for automatic start/stop diesel generator management and AC coupling to retrofit existing PV installations.
Parallel Stacking Support:Supports parallel connection of up to 16 units for expanded power capacity in on-grid and off-grid configurations.
6 Time-Period Energy Scheduling:Offers fully programmable battery charge/discharge time slots to take advantage of variable rate structures.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Active Power | 5,000 W (Max. AC Apparent Power: 5,500 VA) |
| Max. DC Input Power | 6,500 W |
| Max. DC Input Voltage | 500 V |
| Start-up DC Voltage | 125 V |
| MPPT Operating Voltage Range | 150 V – 425 V (Rated: 370 V) |
| Max. Operating PV Input Current | 13 A + 13 A (Short Circuit: 17 A + 17 A) |
| No. of MPPTs / Strings per MPPT | 2 / 1+1 |
| Battery Voltage Range | 40 V – 60 V (48V Low Voltage) |
| Max. Charge / Discharge Current | 120 A / 120 A |
| Max. Conversion Efficiency | 97.6% (Euro Efficiency: 96.5%) |
| Nominal AC Grid Voltage / Frequency | 220 V / 230 V (Single Phase L+N+PE) / 50 Hz / 60 Hz |
| Enclosure Protection Rating | IP65 |
| Dimensions (W x H x D) | 330 × 580 × 232 mm |
| Weight | ~20.5 kg |
| Communication Interfaces | RS485 / CAN / Wi-Fi |
| Phase |
Phase
1 |
| P |
Weight
20,5 kg |
| Internal article group |
Internal article group
deye_1ph_hybrid_LV |
