| Cod: | 100-206 |
| Model: | SUN‐6K‐G05 |
| Garanția produsului (luni): | 120 |
| Marcă: | Deye |

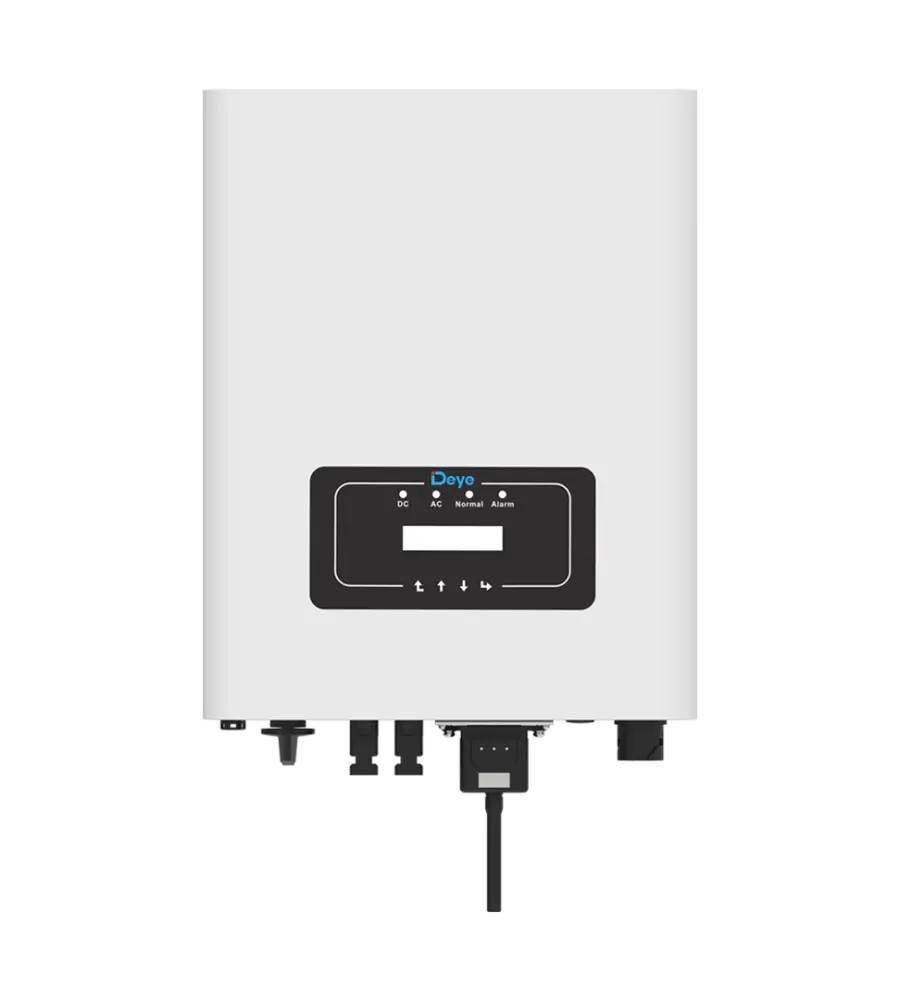

The Deye SUN-6K-G05 is a 6 kW three-phase grid-tied string inverter engineered for residential and light commercial rooftop solar applications requiring direct grid power export without battery storage.Operating with 2 independent MPPT trackers, it achieves high energy harvesting efficiency across strings with differing roof pitch or panel orientations.Designed with a wide MPPT voltage range (120V–850V), a low startup threshold, integrated Type II AC/DC surge protection, and zero-export power management support, this unit provides dependable, low-maintenance daily generation.
Key Features & Benefits
Dual MPPT Tracking: Built with 2 independent MPP trackers to maximize solar yield across multiple array angles or partial shading conditions.
High Efficiency Performance:Delivers up to 98.3% maximum efficiency (97.5% European efficiency) to minimize power conversion losses.
Wide Voltage Range:Features a wide MPPT operating voltage window (120V–850V) with a low startup voltage (140V) for extended daily operating hours.
Integrated Type II Surge Protection: Built-in DC and AC Type II Surge Protective Devices (SPD) safeguard internal circuits against grid transients and lightning surges.
Zero Export & VSG Support: Fully compatible with external energy meters or CTs for zero-feed-in grid compliance and Virtual Synchronous Generator (VSG) grid support.
Compact & Silent Design:Uses a natural convection cooling system (<25 dB noise emission) in an IP65-rated housing for quiet, long-term indoor or outdoor operation.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Active Power | 6,000 W (Max. AC Active Power: 6,600 W) |
| Max. DC Input Power | 7,800 W |
| Max. DC Input Voltage | 1000 V |
| Start-up DC Voltage | 140 V |
| MPPT Operating Voltage Range | 120 V – 850 V |
| Max. DC Input Current | 13 A + 13 A |
| No. of MPPTs / Strings per MPPT | 2 / 1+1 |
| Max. Efficiency | 98.3% (Euro Efficiency: 97.5%) |
| Nominal AC Grid Voltage / Frequency | 230 V / 400 V (3L+N+PE) / 50 Hz / 60 Hz |
| Enclosure Protection Rating | IP65 |
| Dimensions (W x H x D) | ~332 × 457 × 203 mm |
| Weight | ~11.0 kg |
| Communication Interfaces | RS485 / RS232 / Wi-Fi / LAN / GPRS / 4G |
| Phase |
Phase
3 |
| Power AC Out |
PowerAcOut
6000 |
| Greutate Netto |
Greutate
14,5 |
