BOS-A-RACK11

Description

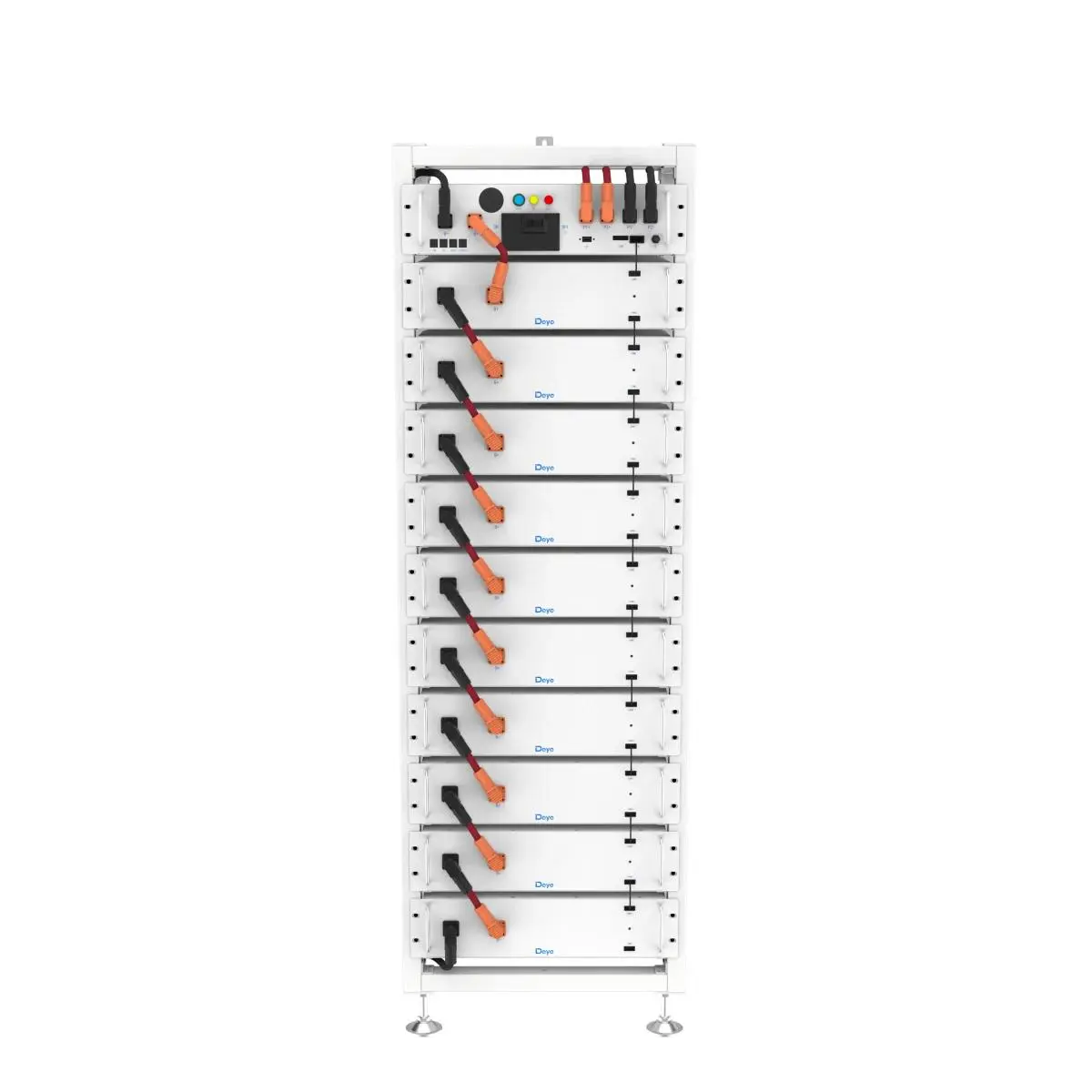

The DEYE BOS-A-RACK11 is a heavy-duty, 19-inch standard industrial rack enclosure engineered specifically for housing DEYE BOS-G series high-voltage battery modules and control units. Featuring an 11-slot capacity (typically housing up to 10 × BOS-GM5.1 battery modules plus 1 × High-Voltage Control Box), it provides a clean, secure, and floor-standing storage architecture for commercial and industrial high-voltage energy storage installations.

Key Features & Benefits

• Standard 19-Inch Rack Design: Purpose-built for housing DEYE high-voltage battery modules (BOS-GM) and top-tier HV Control Units.

• 11-Module Capacity: Accommodates up to 11 total rack units, allowing flexible capacity scaling (e.g., 51.2kWh nominal storage with 10 battery units + 1 Control Box).

• Industrial Structural Integrity: Heavy-gauge galvanized steel frame designed to safely support high total weight loads in commercial plant environments.

• Integrated Busbar & Cable Trays: Pre-routed internal cable channels and structural grounding points for fast, clean, and safe assembly.

• Passive Ventilation & Access: Open-frame / slotted panel structure ensures efficient convection air cooling and rapid front-access maintenance.

Technical Specifications

• Compatible Battery Modules: DEYE BOS-GM5.1 / BOS-G High-Voltage Battery Series

• Slot Capacity: 11 Bays (10× Battery Modules + 1× High-Voltage Control Box)

• Maximum System Energy Capacity: 51.2 kWh (with 10× 5.12kWh modules)

• Frame Standard: 19-Inch Rack Mounting

• Material: Heavy-duty powder-coated galvanized steel

• Ingress Protection: IP20 (Indoor installation)

• Mounting Type: Floor-standing

• Dimensions (W × D × H): ~600 × 600 × 2200 mm

• Weight (Empty Rack): ~85 kg
