| Code: | 100-201 |
| Model: | SUN-3.6K-SG03LP1-EU-00 |
| Product warranty (months): | 120 |
| Brand: | Deye |
Description

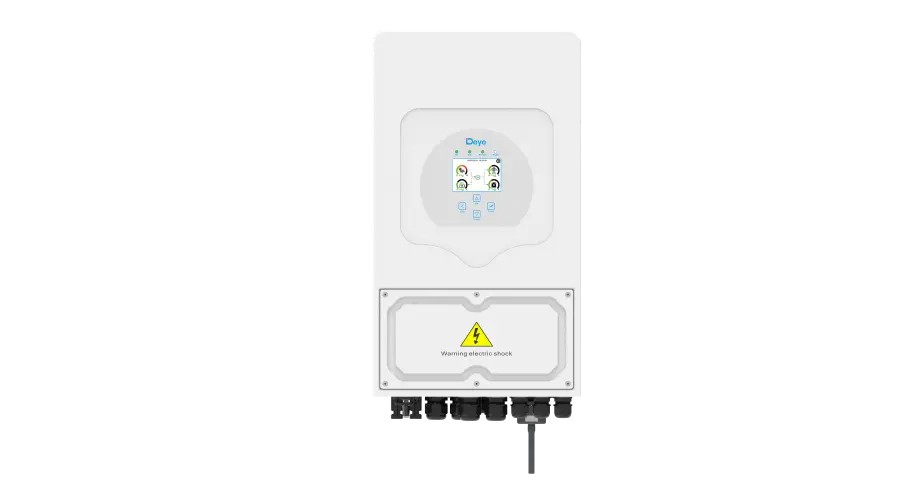

The Deye SUN-3.6K-SG03LP1-EU-00 is a versatile 3.6 kW single-phase low-voltage hybrid inverter engineered for residential solar and energy storage installations.Operating on a safe 48V (40V–60V) battery system, it delivers up to 90A of continuous charge and discharge current.Equipped with 2 independent MPPT trackers, a colorful touch LCD display, generator integration, and fast microsecond UPS switching, it provides flexible power control for self-consumption optimization and emergency off-grid backup.
Key Features & Benefits
Dual MPPT Tracking:2 independent MPP trackers (1+1 string design) optimize energy harvest across roof sections with different angles or minor shading.
Safe 48V Battery Architecture:Compatible with standard 48V lithium-ion ($\text{LiFePO}_4$) and lead-acid low-voltage battery storage systems.
Flexible Time-of-Use Management:Fully programmable 6 time-period schedule for battery charging/discharging to take advantage of variable electricity rates.
Generator & AC Coupling Support:Features a dedicated auxiliary port to support AC-coupled PV expansion and automated start/stop signal control for diesel generators.
Parallel Expansion Capability:Supports parallel stacking of up to 16 units on-grid or off-grid to scale system capacity over time.
Fast UPS Switching:Automatically shifts to off-grid backup power in under 10ms during grid power outages.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Active Power | 3,600 W (Max. AC Apparent Power: 3,960 VA) |
| Max. DC Input Power | 4,680 W |
| Max. DC Input Voltage | 500 V |
| MPPT Operating Voltage Range | 150 V – 425 V (Start-up Voltage: 125 V) |
| Battery Voltage Range | 40 V – 60 V (48V Low Voltage) |
| Max. Charge/Discharge Current | 90 A / 90 A |
| No. of MPPTs / Strings per MPPT | 2 / 1+1 |
| Max. Efficiency | 97.6% (Euro Efficiency: 96.5%) |
| Nominal AC Grid Voltage / Frequency | 220 V / 230 V (L+N+PE) / 50 Hz / 60 Hz |
| Enclosure Protection Rating | IP65 |
| Dimensions (W x H x D) | 330 × 580 × 232 mm |
| Weight | ~20.5 kg |
| Communication Interfaces | RS485 / CAN / Wi-Fi |
| Phase |
Phase
1 |
| P |
Weight
21 |
| Internal article group |
Internal article group
deye_1ph_hybrid_LV |
