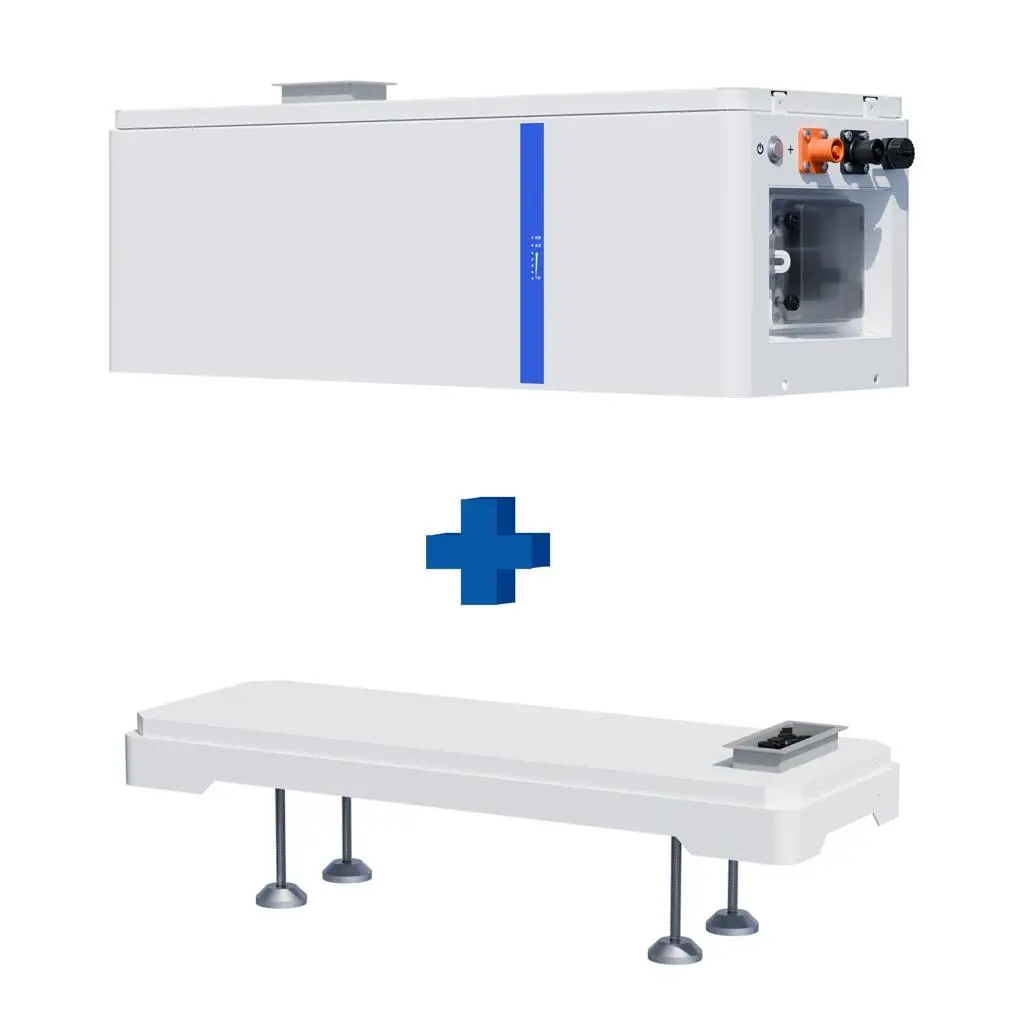

The Deye GB-W-BASE is a heavy-duty floor-mounting base plate designed specifically for the Deye GB-W high-voltage stackable energy storage battery system. Functioning as the structural foundation for floor-mounted installations, it provides mechanical stability, level alignment, and crucial ground isolation for stacked battery modules (up to 6 units per tower). Built from corrosion-resistant steel with an IP65 rating, the base ensures safe weight distribution, proper ventilation clearance, and protection against moisture or ground debris in both indoor and outdoor residential or commercial environments.
Key Features & Benefits
Heavy-Duty Structural Support: Engineered to safely support the full static load of stacked GB-W battery modules and top PDU control boxes.
Corrosion-Resistant Outdoor Finish: Constructed with high-strength galvanized steel and outdoor-grade powder coating for long service life.
Ground & Moisture Isolation: Elevates battery packs off floor surfaces to prevent moisture ingress and mechanical damage.
Integrated Leveling Feet: Adjustable leveling mechanism enables precise vertical alignment on uneven floor surfaces.
Seamless Modular Fit: Features pre-aligned guide pins and locking points for quick, cable-free stacking of GB-W battery modules.
IP65 Rated Construction: Weatherproof construction matching the IP65 rating of the entire GB-W high-voltage battery family.
Technical Specifications
| Parameter | Specification |
| Product Type | Floor Mounting Base Plate / Foundation |
| Compatible Battery System | Deye GB-W High Voltage Battery Series |
| Material | Heavy-gauge Galvanized Steel (Powder Coated) |
| Max. Mechanical Load Capacity | Up to 6x GB-W Battery Modules + 1x PDU Control Box (~350+ kg) |
| Mounting Type | Floor Standing (Indoor / Outdoor) |
| IP Protection Rating | IP65 |
| Operating Temperature | -20°C to 60°C |
| Dimensions (W x H x D) | ~543 × 90 × 385 mm |
| Weight | ~7.5 kg |
