Description

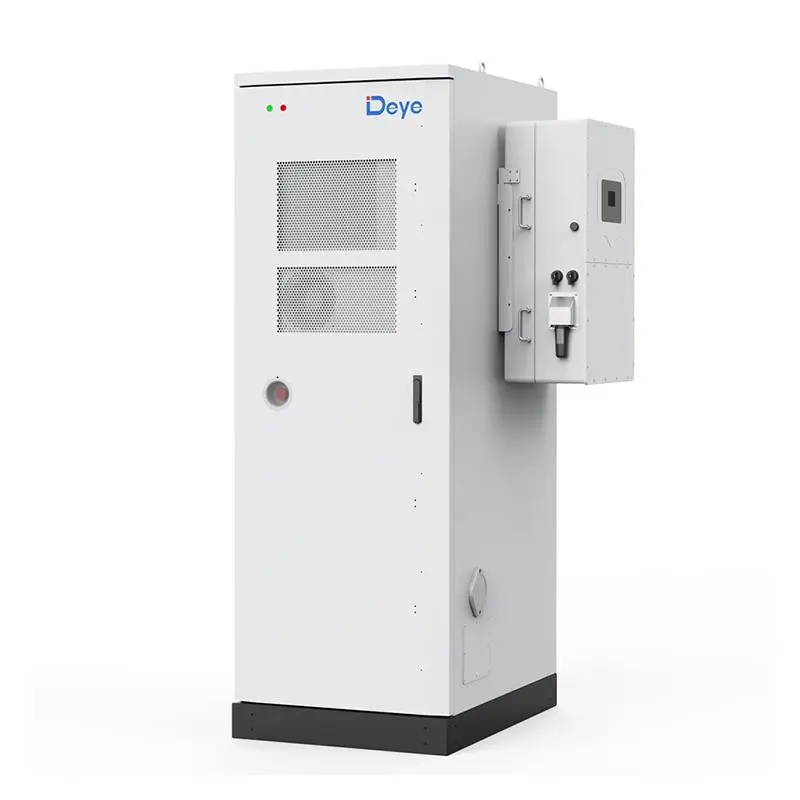

The Deye GE-F256-BC-2-A3 is a 257.23kWh outdoor LiFePO₄ battery cabinet designed for commercial and industrial energy storage applications. Featuring intelligent air cooling, integrated fire protection, and IP55-rated enclosure, it delivers reliable, safe, and scalable energy storage for peak shaving, backup power, and renewable energy integration.
Key Features & Benefits
- 257.23kWh usable energy capacity
- Safe LiFePO₄ battery technology
- Outdoor IP55-rated cabinet
- Smart air cooling system
- Integrated fire protection and gas detection
- Up to 8,000+ cycle life
- CAN & RS485 communication
- Supports parallel system expansion
- Ideal for C&I ESS applications
- 10-year manufacturer warranty
Technical Specifications
| Specification | Value |
|---|
| Model | GE-F256-BC-2-A3 |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 257.23 kWh |
| Usable Energy | 257.23 kWh |
| Nominal Voltage | 819.2 V |
| Operating Voltage | 640–934.4 V |
| Rated DC Power | 129 kW |
| Recommended Charge/Discharge Current | 157 A |
| Max. Continuous Current | 180 A |
| Peak Discharge Current | 285 A (15 s) |
| Cooling | Smart Air Cooling |
| Communication | CAN, RS485 |
| Protection Rating | IP55 |
| Installation | Floor-mounted |
| Dimensions (W×D×H) | 1303 × 1240 × 2510 mm |
| Weight | 2770 kg |
| Cycle Life | ≥8,000 cycles |
| Operating Temperature | -30°C to +55°C |
| Warranty | 10 Years |
