Кошницата е празна| Единица: | |
| Код: | 100-192 |
| Модел: | SUN-20K-SG01HP3-EU-AM2 |
| Гаранция за продукта (месеци): | 120 |
| Марка: | Deye |
K-SG0HP3-EU.7.PNG?w=900 "4016_SUN-(6-20)K-SG0HP3-EU.7")
Description

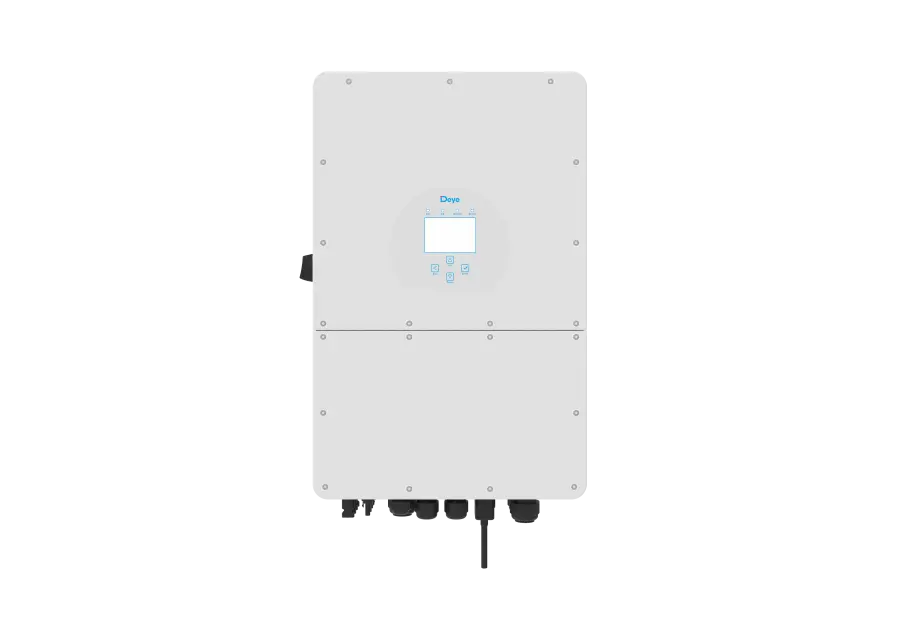

The Deye SUN-20K-SG01HP3-EU-AM2 is a high-performance, 20 kW three-phase high-voltage hybrid inverter engineered for large residential and commercial solar installations.Designed to maximize self-consumption and energy independence, it operates with a wide high-voltage battery range (160V–700V), delivering higher system efficiency and reduced thermal dissipation.Equipped with dual MPPT trackers, a dynamic touchscreen LCD interface, and an included Wi-Fi plug, this inverter ensures seamless real-time monitoring and advanced energy flow control across on-grid and off-grid scenarios.
Key Features & Benefits
High-Voltage Efficiency:Supports 160V–700V HV batteries for lower transmission losses and superior charge/discharge performance.
100% Unbalanced Phase Output: Drives full continuous power to individual single-phase loads during off-grid or backup operation.
Flexible Dual MPPTs:2 independent MPP trackers (2/2+2 string design) optimize yield on multi-directional rooftops.
Smart Load & Generator Support: Features a dedicated port that can manage diesel generators, AC coupling, or smart dumping loads (e.g., water heaters).
Parallel Capability:Supports up to 10 units in parallel for system expansion on both grid-tied and off-grid setups.
Time-of-Use Management:Up to 6 programmable time windows for battery charging/discharging directly linked to dynamic energy tariffs.
Plug-and-Play Monitoring: Pre-packaged with a Wi-Fi dongle for instant app and web portal connectivity.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Power | 20,000 W (Peak: 1.5x nominal for 10s) |
| Max. DC Input Power | 26,000 W |
| Max. DC Input Voltage | 1000 V |
| MPPT Voltage Range | 150 V – 850 V |
| Battery Voltage Range | 160 V – 700 V (Lithium-ion) |
| Max. Charge/Discharge Current | 37 A / 37 A |
| No. of MPPTs / Strings per MPPT | 2 / 2+2 |
| Max. Efficiency | 97.6% (European Efficiency: 97.0%) |
| IP Rating / Protection | IP65 (Outdoor deployment) |
| Dimensions (W x H x D) | 408 × 638 × 237 mm |
| Weight | 30.5 kg |
| Communication Interface | RS485 / CAN / Wi-Fi (Included) |
| фаза |
фаза
3 |
| Нетно тегло |
Тегло
30,5 |
| Internal article group |
Internal article group
deye_3ph_hybrid_HV_C&I |
