Кошницата е празна| Единица: | |
| Код: | 100-200 |
| Модел: | SUN-16K-SG01LP1-EU |
| Гаранция за продукта (месеци): | 120 |
| Марка: | Deye |
Description

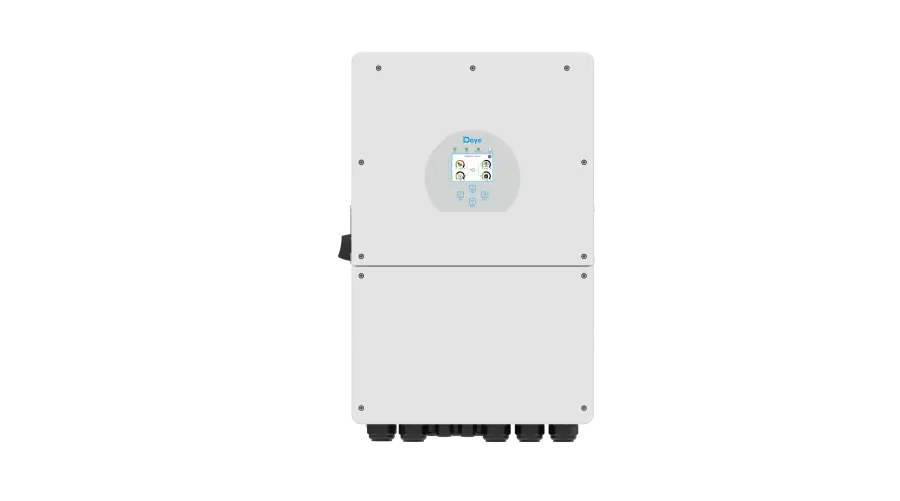

The Deye SUN-16K-SG01LP1-EU is an ultra-high-capacity 16 kW single-phase low-voltage hybrid inverter designed for demanding residential and commercial energy storage applications.Operating on a safe 48V (40V–60V) battery architecture, it features an industry-leading charge and discharge current capability of up to 290A.Equipped with 3 independent MPPT trackers, a colorful touch LCD screen, generator integration, and microsecond UPS-class backup switching, this unit provides maximum power control for off-grid resilience and high-load single-phase systems.
Key Features & Benefits
3 Independent MPPT Trackers:Accommodates up to 3 PV array orientations (2+2+2 string inputs) with a high DC input power capacity up to 25,600 W.
Exceptional 290A Battery Charge/Discharge Current: Delivers massive power throughput on safe 48V low-voltage battery banks to easily handle large household or commercial loads.
6 Time-Period Energy Scheduling: Programmable charging/discharging time slots to optimize self-consumption and take advantage of variable electricity rates.
Generator & AC Coupling Support:Dedicated AUX port supports seamless integration with existing grid-tied inverters and automatic start/stop control for diesel generators.
Parallel Stacking & High Scalability:Supports parallel connection of up to 16 units for both on-grid and off-grid expansion.
Fast UPS-Class Backup:Features rapid off-grid backup switching (<4ms to 10ms switchover time) to maintain uninterrupted power to critical loads during grid outages.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Active Power | 16,000 W (Max. AC Apparent Power: 17,600 VA) |
| Max. DC Input Power | 25,600 W |
| Max. DC Input Voltage | 500 V |
| Start-up DC Voltage | 125 V |
| MPPT Operating Voltage Range | 150 V – 425 V (Rated: 370 V) |
| Max. PV Input Current | 26 A + 26 A + 26 A |
| No. of MPPTs / Strings per MPPT | 3 / 2+2+2 |
| Battery Voltage Range | 40 V – 60 V (48V Low Voltage) |
| Max. Charge / Discharge Current | 290 A / 290 A |
| Max. Efficiency | 97.6% (Euro Efficiency: 96.5%) |
| Nominal AC Grid Voltage / Frequency | 220 V / 230 V (L+N+PE) / 50 Hz / 60 Hz |
| Enclosure Protection Rating | IP65 |
| Dimensions (W x H x D) | 464 × 763 × 282 mm |
| Weight | ~52.0 kg |
| Communication Interfaces | RS485 / CAN / Wi-Fi / LAN |
| фаза |
фаза
1 |
| Нетно тегло |
Тегло
48,6 |
| Internal article group |
Internal article group
deye_1ph_hybrid_LV |
