Description

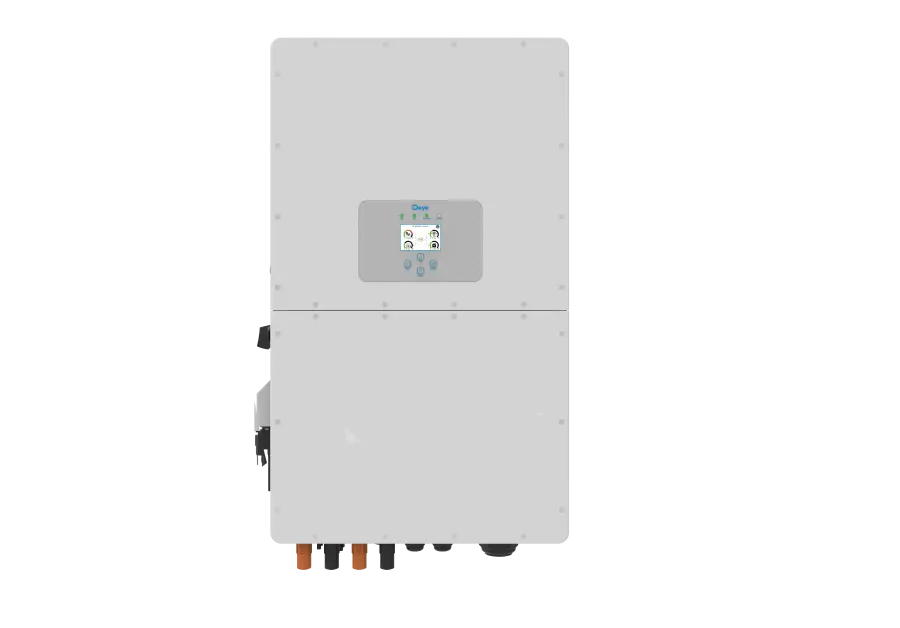

The Deye SUN-25K-SG01HP3-EU-AM2 is a commercial-grade, 25 kW three-phase high-voltage hybrid inverter built for large residential properties and commercial PV projects.Designed to work with high-voltage battery systems (160V–700V/800V class), it delivers optimal system efficiency and reduced energy loss.Featuring dual MPPT trackers supporting up to 50 kW PV access power, 100% phase-unbalanced output capacity, and an integrated Wi-Fi plug, this inverter guarantees precise load management, backup power, and real-time remote monitoring.
Key Features & Benefits
High-Voltage System Efficiency:Operates with high-voltage lithium batteries for fast charging/discharging up to 50A and maximum thermal performance.
100% Unbalanced Output: Supplies full continuous power to individual single phases during off-grid or blackout scenarios.
High PV Oversizing: Accepts up to 50,000 W PV access power across 2 independent MPPTs (2+2 string design).
Multi-Unit Scalability:Supports up to 10 units in parallel on-grid and off-grid, as well as multiple battery connections.
Smart Energy & Generator Management:Includes a multi-functional Aux port for AC coupling, diesel generators, or smart dumping loads.
Time-of-Use Scheduling:Features 6 customizable charging/discharging time slots to maximize dynamic power tariffs.
Complete Kit: Includes a plug-and-play Wi-Fi dongle for app and cloud portal tracking out of the box.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Power | 25,000 W (Peak: 1.5x nominal for 10s) |
| Max. DC Input Power (Access) | 50,000 W |
| Max. DC Input Voltage | 1000 V |
| MPPT Operating Voltage Range | 150 V – 850 V |
| Battery Voltage Range | 160 V – 700 V (Lithium-ion) |
| Max. Charge/Discharge Current | 50 A / 50 A |
| No. of MPPTs / Strings per MPPT | 2 / 2+2 |
| Max. Efficiency | 97.6% |
| IP Protection Rating | IP65 (Suitable for outdoor placement) |
| Dimensions (W x H x D) | 408 × 638 × 237 mm |
| Weight | ~30.5 kg |
| Communication Protocols | RS485 / CAN / Wi-Fi (Plug included) |
| Fáze |
Phase
3 |
| Váha |
Váha
30,5 |
