| Kód: | 170-042 |
| Model: | SUN-8K-SG01LP1-EU |
| Záruka (měsíce): | 120 |
| Značka: | Deye |
Description

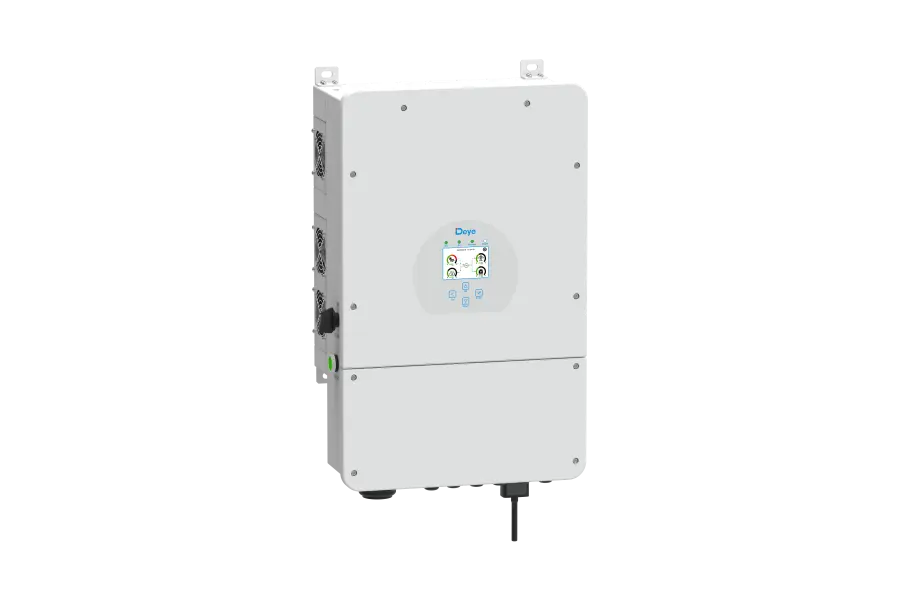

The Deye SUN-8K-SG01LP1-EU is a high-performance 8 kW single-phase low-voltage hybrid inverter engineered for residential and light commercial solar energy storage applications. Operating on a safe 48V (40V–60V) battery system architecture, it delivers a high continuous charging and discharging current of up to 190A.Equipped with 2 independent MPPT trackers, a colorful touch LCD screen, generator integration capabilities, and parallel stacking support for up to 16 units, it provides reliable power control for self-consumption, grid feed-in, and microsecond off-grid backup.
Key Features & Benefits
Safe 48V Battery Architecture: Fully compatible with standard 48V low-voltage lithium-ion and lead-acid battery banks.
High Charge/Discharge Capability:Delivers up to 190A continuous charge and discharge current to handle high household loads or rapid battery charging.
Dual MPPT Tracking:Built with 2 independent MPP trackers (2+2 string inputs) to maximize solar yield on multi-pitch roofs or shaded conditions.
6 Time-Period Energy Scheduling:Programmable charging/discharging schedules allow strategic battery usage based on dynamic time-of-use tariffs.
Generator & AC Coupling Support:Features a dedicated AUX port to support AC-coupled PV retrofits and automated diesel generator start/stop control.
Parallel Stacking & Fast UPS:Supports parallel connection of up to 16 units (on-grid/off-grid) and switches to backup power mode within <10 ms.
Technical Specifications
| Parameter | Specification |
| Rated AC Output Active Power | 8,000 W (Max. AC Apparent Power: 8,800 VA) |
| Max. DC Input Power | 10,400 W |
| Max. DC Input Voltage | 500 V |
| Start-up DC Voltage | 125 V |
| MPPT Operating Voltage Range | 150 V – 425 V (Rated: 370 V) |
| Max. Operating PV Input Current | 26 A + 26 A (Max. Short-Circuit: 44 A + 44 A) |
| No. of MPPTs / Strings per MPPT | 2 / 2+2 |
| Battery Voltage Range | 40 V – 60 V (48V Low Voltage) |
| Max. Charge / Discharge Current | 190 A / 190 A |
| Max. Conversion Efficiency | 97.6% (Euro Efficiency: 97.0%) |
| Nominal AC Grid Voltage / Frequency | 220 V / 230 V (L+N+PE) / 50 Hz / 60 Hz |
| Enclosure Protection Rating | IP65 |
| Dimensions (W x H x D) | 420 × 670 × 233 mm |
| Weight | ~32.0 kg |
| Communication Interfaces | RS485 / CAN / Wi-Fi / LAN |
| Fáze |
Phase
1 |
| Váha |
Váha
32 kg |
| Internal article group |
Internal article group
deye_1ph_hybrid_LV |
