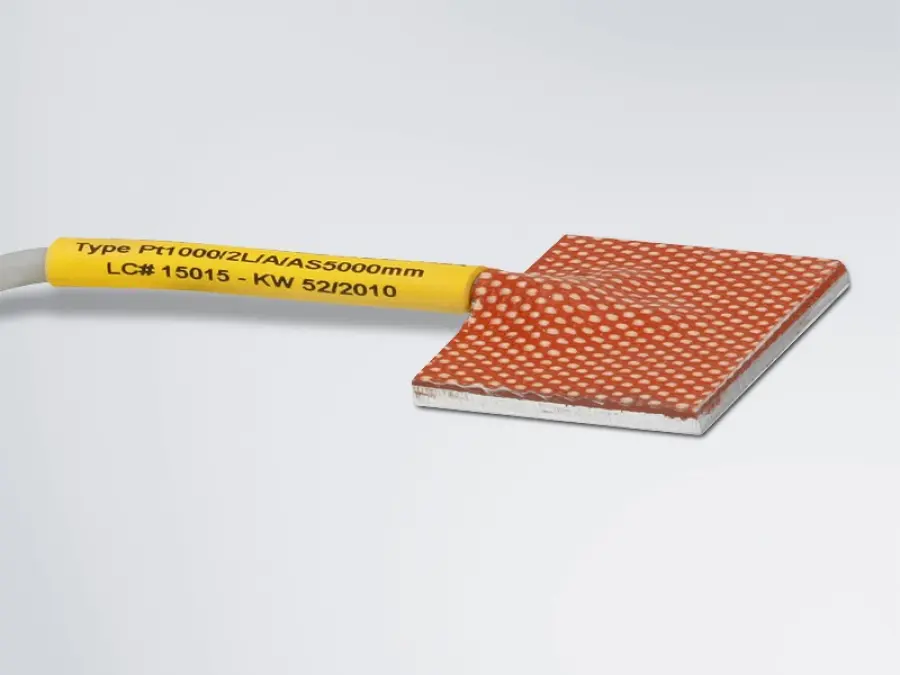

In general, this sensor measures the temperature on surfaces. By mounting the sensor on the back of the PV module, the module temperature can be measured.
The temperature of the PV module is one of the decisive factors for the power output. By supervision, the PV-owner can conclude the performance of the power chart.
Mounting tip: It is recommended to fix the sensor and the cable with an additional adhesive tape.
Technical data | |
Sensor | PT1000 |
Measuring range | -20°C to +150°C |
Accuracy | ±0.8°C (in the range -20°C to 100°C) |
Design | Sensor on an adhesive film for measurement on sheets |
Dimensions | 50 x 100 mm |
Cable | 3 m Cu-cable; silicon isolated, ferrules, UV-resistant |
Max. cable length (Distance: Sensor Card/Box - sensor) | 20 m |
