| Kód: | 400-039 |
| Model: | SUN-EVSE22K01-EU-AC |
| Značka: | Deye |
Description

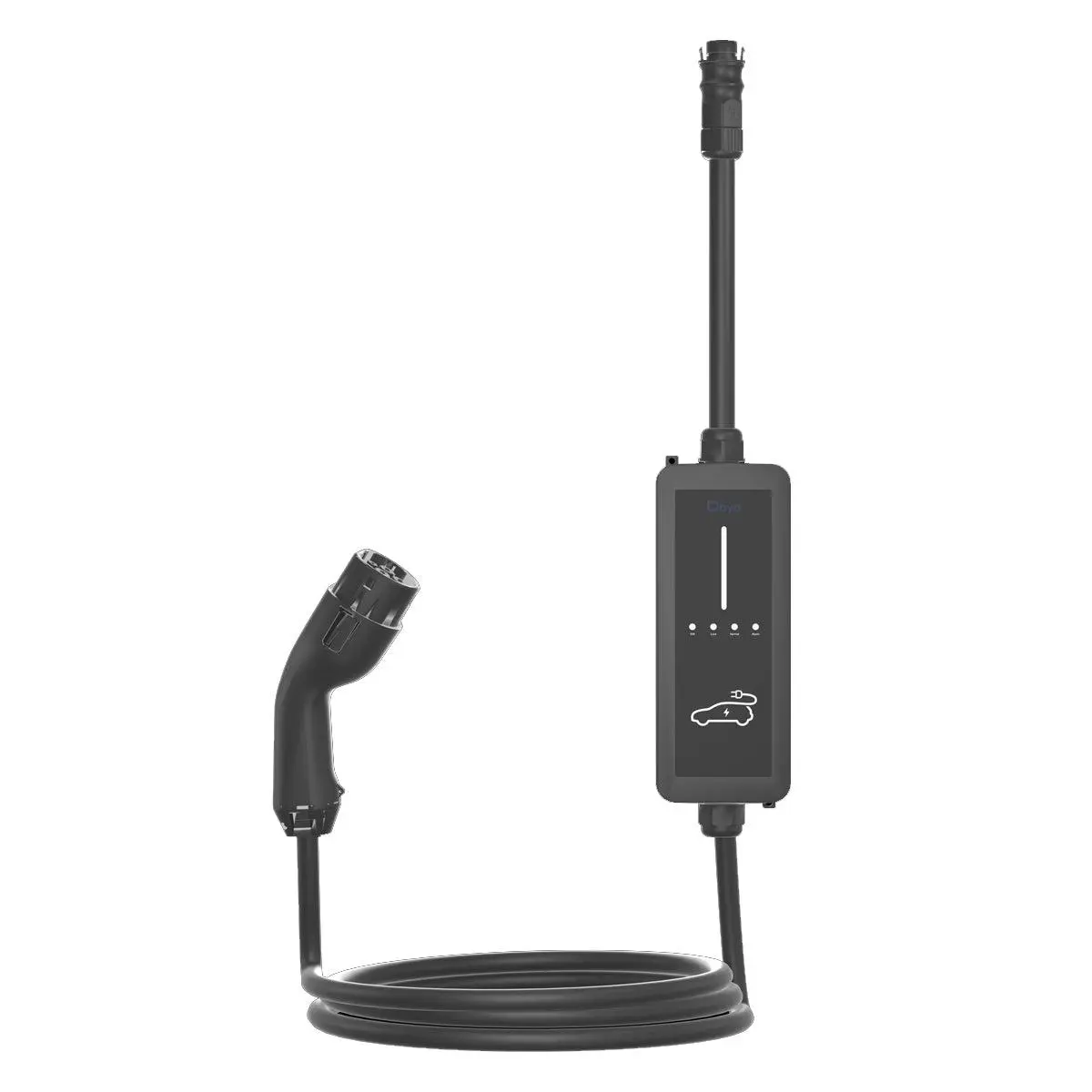

The Deye SUN-EVSE22K01-EU-AC is an intelligent AC Wallbox EV Charger designed for residential and commercial solar-integrated charging.Capable of delivering up to 22 kW in 3-phase mode or up to 7 kW in single-phase mode, it seamlessly syncs with Deye hybrid inverters via LoRa, Wi-Fi, or Bluetooth.This synchronization allows users to route excess PV power directly to their electric vehicle or manage off-peak dynamic charging via the Deye Cloud app.Featuring an IP66/IP67 weatherproof housing and standard Type 2 connector cable, it provides safe, reliable fast charging across all European EV models.
Key Features & Benefits
Dual Output Mode (7 kW / 22 kW):Flexible deployment supporting 230V single-phase (up to 7 kW / 32A) or 400V three-phase (up to 22 kW / 32A) charging.
Solar Surplus Priority Mode:Wirelessly pairs with Deye hybrid inverters to charge EVs exclusively using excess photovoltaic energy or customized battery SOC thresholds.
LoRa / Wi-Fi / Bluetooth Wireless:Low-latency LoRa communication ensures stable integration with inverter equipment without relying on home Wi-Fi stability.
4-Slot Scheduled Charging:Programmable time-of-use scheduling via Deye Cloud app to leverage off-peak electricity tariffs and cut charging costs.
Rugged Weatherproof Housing:Heavy-duty IP66 / IP67 enclosure rated for temperature extremes (-40°C to +55°C) in indoor or outdoor installations.
Universal Type 2 Compatibility: Integrated ~4.2 m Type 2 connector cable works with all standard European electric vehicles.
Technical Specifications
| Parameter | Specification |
| Model Code | SUN-EVSE22K01-EU-AC |
| Max. Nominal Output Power | 22 kW (3-Phase) / 7 kW (1-Phase) |
| Rated AC Input Voltage | 230 V AC (1-Phase) / 400 V AC (3-Phase) |
| Max. Charging Current | 32 A per phase (Adjustable 6A – 32A) |
| Connector Type & Cable Length | Type 2 (Mennekes) / ~4.2 meters |
| Wireless Communication | LoRa / Wi-Fi (2.4 GHz) / Bluetooth BLE / RFID option |
| Protective Features | Overvoltage, Undervoltage, Overload, Short-circuit, Leakage Current Protection |
| Ingress Protection Rating | IP66 / IP67 |
| Operating Temperature | -40°C to +55°C |
| Dimensions (W x H x D) | ~264 × 104 × 57.5 mm |
| Weight | ~3.7 kg |
