          SolarEdge SE1500M Compact Extended

          Pro zobrazení informací je nutné být přihlášený

          SE1500M Compact Extended Více informací

          Jednotka:
          Kód:816-478
          Model:SE1500M-RWK02BNN4
          Záruka (měsíce):12
          Značka:SolarEdge

          Pro zobrazení informací je nutné být přihlášený

          Dostupnost

          Pro zobrazení informací je nutné být přihlášený

          Popis

          Affordable, Green Electricity for Small Residential Rooftops

          The single phase inverter with compact technology is a cost-effective DC-optimized inverter solution for small rooftop systems of 4-8 modules. It is ideally suited for homes with limited roof space, social housing projects, or for meeting minimum sustainability requirements.

          Featuring many SolarEdge benefits such as greater energy harvest from each module, long-term product warranties, advanced safety features, and free module-level monitoring1, the single phase inverter with compact technology is easily installed on either existing rooftops or new buildings, and delivers clean energy which is affordable, efficient, and safe.



          Specifically Designed for Rooftop Systems of 4-8 Modules

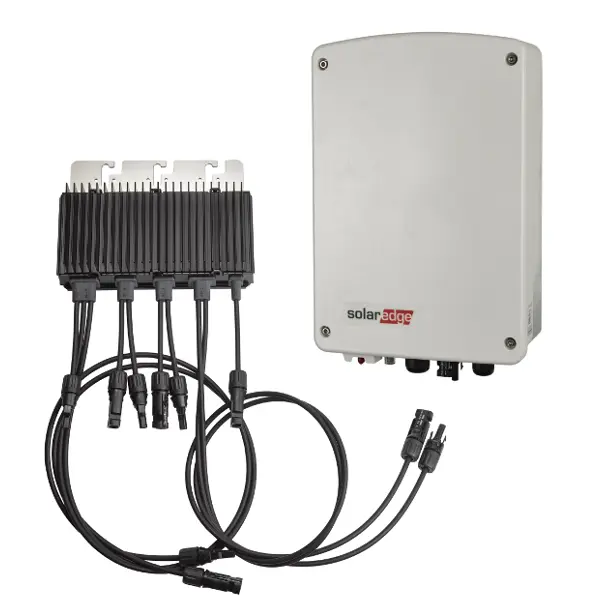

          This solution includes a single power optimizer with four Maximum Power Point Trackers (MPPTs) for harvesting more energy from each module. One or two 60-cell PV modules can be connected to each input.  The M2640 power optimizer works exclusively with the new single phase inverter with compact technology. The wall-mounted inverter is extremely compact, very lightweight, easy to install, and is available in 1kW, 1.5kW, and 2kW sizes.

          Feature Highlights:

          • Power optimizer and inverter designed to work exclusively with each other
          • Extremely compact, lightweight, and easy to install
          • Quick and easy inverter commissioning directly from your smartphone using the SolarEdge SetApp
          • Enhanced safety with the SafeDC™ feature, designed to reduce system voltage to 10V for maximum PV safety
          • IP65-rated inverter — suitable for indoor or outdoor installation
          • Two different inverter options are available depending on project requirements, for maximum cost effectiveness:
            • Basic — for installations where monitoring connectivity isn’t required
            • Extended — for installations requiring monitoring connectivity
              • Includes built-in Ethernet
              • Additional connectivity options may be purchased separately such as Wi-Fi, ZigBee®, and GSM plug-ins
              • Connection to smart energy products and energy meters is also supported


          Typical Rooftop Layout with Compact Technology:

          House Illustration



          1Module-level monitoring available with the extended communication option

          Ke stažení

          Videa

          Odkazy

          Datasheet

          Installation manual

          Other

          Warranty Statement

          {common::4::brochure}

          Certificate

          Dokumenty

          Technická specifikace

          Inverters

          Výkon
          Výkon
          2025
          Fáze
          Phase
          1
          String
          String
          4
          MPPT
          MPPT
          4
          Power AC Out
          PowerAcOut
          1500 Watt
          Power DC IN
          PowerDcIn
          2025 Watt
          Váha
          Váha
          6 kg
          Internal article group
          Internal article group
          se_resi_1ph
